Single Head Keg Filling Machine

Single Head Keg Filling Machine

Single Head Keg Filling Machine is ideal for small breweries and pilot production. It ensures accurate filling with low oxygen pickup and stable performance. Made of food-grade stainless steel with CO₂ pre-pressurization, it keeps beer fresh and carbonation stable in a compact design. Widely used in craft breweries, it provides a simple and reliable keg filling solution.

Get Quote

(0) Reviews

Single Head Keg Filling Machine

Single Head Keg Filling Machine is designed for craft breweries and small beverage manufacturers. It integrates filling control, CO2 pressure balancing, and sanitary pipeline design, suitable for beer keg filling with reliable operation and easy maintenance.

Main configurations include stainless steel filling system, CO2 pressure control, food-grade pipelines, and single filling head design. The machine ensures stable filling accuracy, low foaming, and hygienic keg filling performance.

Main Function and Feature

High Efficiency Operation

Optimized design improves keg filling and washing speed while reducing manual labor and overall production time.

Low Oxygen Pickup

Advanced CO2 protection system minimizes oxygen exposure, maintaining beer quality and extending product freshness.

Stable Industrial Performance

Strong mechanical structure ensures continuous operation with stable performance in brewery production environments.

Flexible Application Range

Suitable for different keg sizes and adaptable to various brewery production requirements.

Easy Cleaning and Maintenance

Sanitary design with accessible structure allows quick cleaning and reduces maintenance downtime.

Customizable Configuration

Machine specifications, filling heads, and system layout can be customized based on production needs.

Technical Specifications

Filling Heads	1 head – Single filling stations, suitable for small to medium batch production	Capacity	20-30Kegs/h
Machine Dimensions (L×W×H)	~600×650×1550 mm ~1200×850×1550 mm – Depending on single or double head design	Applicable Keg Size	10–50 L (up to 60 L optional) – Supports EURO/US/DIN couplings
Net Weight	~65–180 kg – Varies with configuration	Beer Waste	<1% – Uses back-pressure and CO₂ pre-pressurization to reduce foam
Power / Voltage	AC 220V / 380V 50Hz (customizable) – Single or three-phase optional	Filling Method	Upright / topside up – Top-down filling
Power Consumption	~30–80 W – Depends on number of filling heads	Control System	PLC / Button panel / Touch screen – Optional SIEMENS/Schneider
CO₂ Pressurization	Supported – CO₂ flushing reduces oxidation and foam	CIP Cleaning	Optional – Piping supports CIP (Clean-in-Place) circulation

Working Process of Single Head Keg Filling Machine

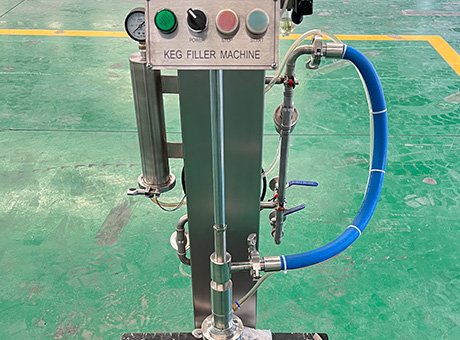

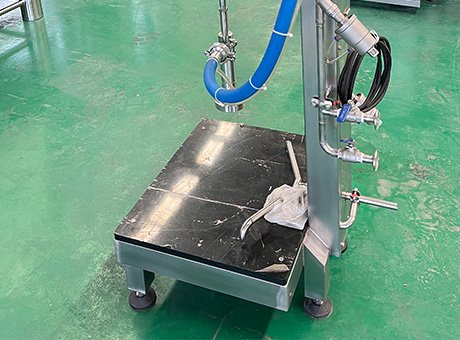

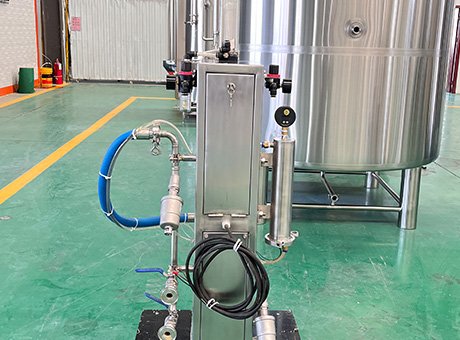

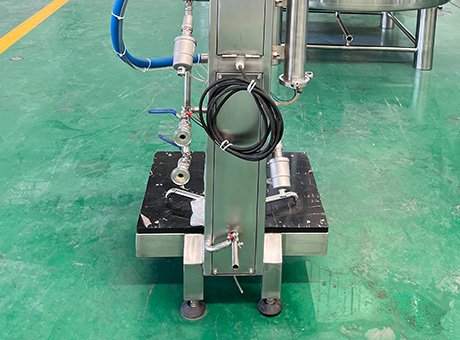

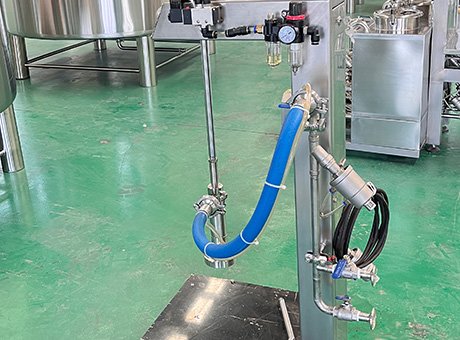

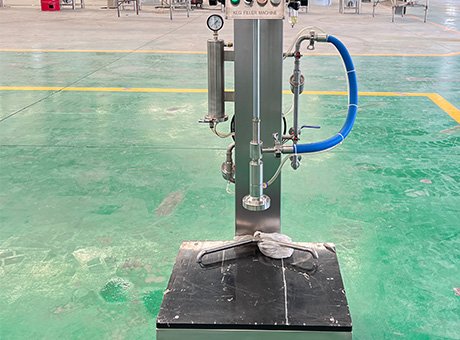

Detailed Display

FAQ

1.What is the production capacity of the single head keg filling machine?

It fills 20–30 kegs per hour, depending on keg size and fill volume. On a single-head machine the keg is filled one at a time under counter-pressure, so the cycle time per keg is the throughput limit rather than a conveyor speed — a 10 L keg cycles faster than a 50 L keg at the same fill pressure. Tell us your keg size and daily target and we will confirm the figure.

2.What keg sizes and spear types does it support?

It handles keg sizes from 10 L to 50 L, with 60 L available as an optional maximum size. Keg size is managed at the filling head through adaptors and changeable format parts, and the spear coupling has to match the keg valve type you use. Switching between keg sizes is therefore an adaptor change rather than a second machine — send us your keg and spear specification and we will confirm the adaptors.

3.Which production scale is it designed for?

It is designed for breweries filling a modest number of kegs per day, where kegging is one task among several rather than a continuous operation. It suits small and mid-sized breweries, brewpubs, and producers who keg a portion of output while packaging the rest in bottles or cans. The lowest entry cost in the range is deliberate — capacity can be added later.

4.What utilities and operators does it require?

It needs power, compressed air, and a CO₂ supply for purging and counter-pressure — the gas connection is the one requirement that distinguishes a keg filler from a bottle or can machine. One operator is sufficient: they load each keg, start the cycle and remove the filled keg. Because the operator is present for every keg, the machine should sit close to where filled kegs are stored. Machine dimensions are listed in the Technical Specifications table on this page.

5.When should I step up to a 2 head keg filling machine?

Step up when the kegging task starts delaying other work, or when you are kegging daily rather than occasionally. The 2-head machine runs at 30–50 kegs per hour, so it roughly doubles the output for a modest increase in cost, and one operator can prepare the next keg while the current one fills. If you are kegging a few dozen kegs a week, the single-head unit remains the better value.
