Automatic Glass Bottle Filling Line

This glass bottle filling line is a fully automated solution for hygienic and efficient filling of beer, carbonated drinks, and other beverages into glass bottles. It integrates bottle rinsing, filling, and capping in one compact system, improving production efficiency while reducing labor costs.

Equipped with a high-precision filling system, it ensures accurate liquid levels and minimizes product loss, especially for carbonated beverages. The PLC touch screen control system allows easy operation and real-time monitoring. With stable performance and compatibility with various bottle sizes, it is an ideal choice for breweries and beverage manufacturers seeking efficiency and reliability.

Suitable for craft beer, lager, sparkling water, soda drinks, kombucha, cider, juice beverages, and other liquid products.

Get Quote

Automatic Glass Bottle Filling Line

High-Precision Filling

Ensures accurate and consistent filling volume with minimal deviation, improving product quality and reducing material waste.

Fully Automatic Line

Integrated rinsing, filling, capping, and conveying for continuous automatic operation, reducing labor and increasing efficiency.

Flexible Bottle Adaptation

Quick adjustment for different bottle sizes and shapes, suitable for glass and PET bottles with easy changeover.

Stable & Low Maintenance

Reliable design ensures long-term stable running with simple maintenance, reducing downtime and operating cost.

Automatic Glass Bottle Filling Line Configuration

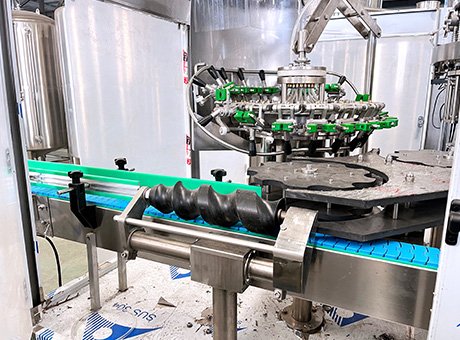

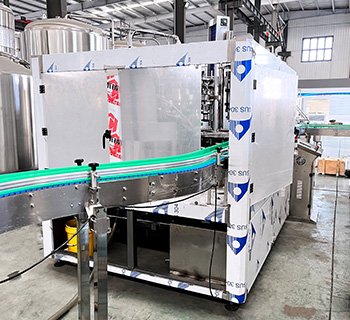

Glass bottle beer filling and capping machine

An integrated system that rinses, fills and caps glass beer bottles in one line, ensuring hygiene, high efficiency and stable filling accuracy.

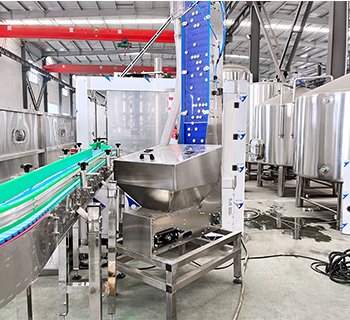

Cap elevator

Automatically lifts and feeds caps to the capping machine, ensuring continuous supply, reducing manual work and improving production efficiency.

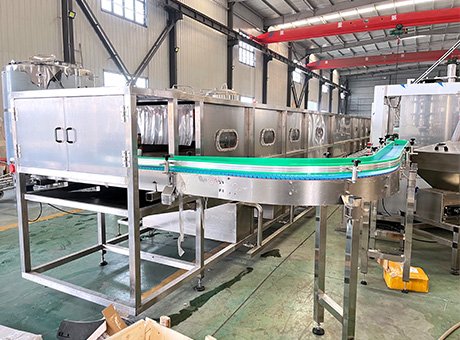

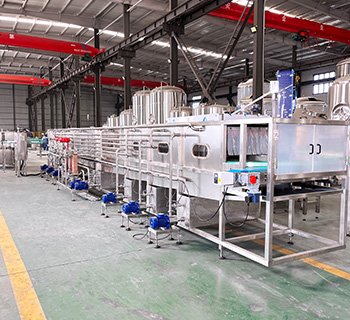

Spray Sterilization Tunnel

Uses high-pressure spray and sterilizing solution to clean and disinfect bottles, ensuring hygiene before filling and reducing contamination risk.

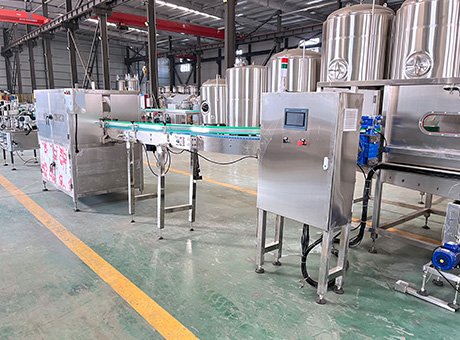

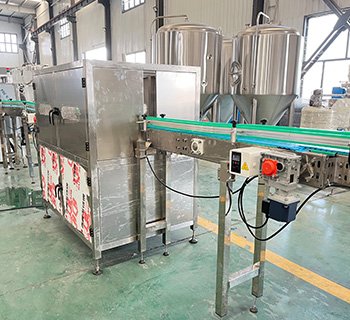

Automatic blow-drying machine

Removes residual water from bottles using high-pressure air, ensuring dry, clean bottles before filling and improving product quality and adhesion.

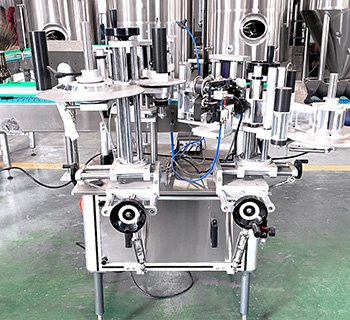

Double label head self-adhesive labeling machine

Applies front and back labels simultaneously with high precision, suitable for round bottles, improving labeling speed and appearance consistency.

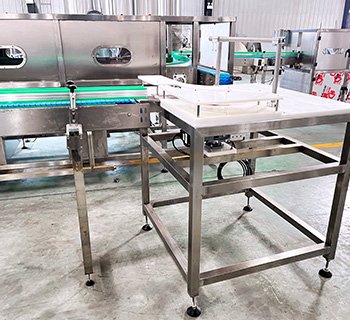

Rotary empty bottle platform

Rotating table used for empty bottle accumulation and smooth transfer into the production line, ensuring stable and continuous bottle feeding.

Automatic Glass Bottle Filling Line Parameter Table

Parameter	Key Specifications/Description
Single Machine Efficiency	≥95%
Filling Temperature	0-4℃
Max CO2 Content	3-4g/L
Filling Pressure(CO₂)	0.15-0.4MPa
Filling Method	Short-tube isobaric Flling
Conveyor Height	1150-1300 mm
Level Control	Mechanical valve with vent pipe
Oxygen Removal	Vacuum&COz displacement
Compressed Air Consumption	0.45m³/h (0.8 MPa)
Sterile Air Consumption	1.2m³/h(0.4MPa)
Vacuum Consumption	180g/hl(0.6 MPa)
Vacuum Pump	Stainless steel pump head

Production Process of Automatic Glass Bottle Filling Line

Design & Planning

Designed according to bottle type, production capacity, and factory layout to provide an efficient and customized filling solution.

Precision Manufacturing

Manufactured with food-grade stainless steel and precision machining for excellent durability, hygiene, and reliable performance.

Assembly & Integration

Mechanical components, filling systems, pipelines, and electrical controls are carefully assembled and calibrated for smooth operation.

Performance Testing

Each machine is tested for filling accuracy, pressure stability, leak prevention, and overall operating performance before delivery.

Packing

After final inspection, the machine is securely protected and packed to ensure safe transportation and reliable delivery.

Automatic Glass Bottle Filling Line Details
