2 Head Keg Washer

2 Head Keg Washer is designed for medium-scale breweries and beverage production lines. It provides efficient dual-keg washing, significantly improving cleaning capacity and reducing labor cost while ensuring stable performance, hygienic cleaning results, and smooth operation for continuous brewery workflows.

(0) Reviews

2 Head Keg Washer

2 Head Keg Washer is suitable for craft breweries and beverage plants. It integrates dual washing heads for simultaneous cleaning of two kegs with water rinsing and chemical cleaning cycles, ensuring stable hygiene performance and improved efficiency.

Main configurations include two washing heads, stainless steel frame, high-pressure spray system, and cleaning circulation system, ensuring reliable and consistent washing performance.


Main Function and Feature

High Cleaning Efficiency Advantage

Dual-head system increases washing speed and improves production efficiency for breweries.

Stable Washing Advantage

Ensures consistent cleaning quality for multiple kegs, improving operational reliability.

Chemical Cleaning Advantage

Supports alkaline and water washing cycles, improving sanitation level and cleaning performance.

Industrial Durability Advantage

Strong stainless steel structure enhances machine lifespan and stability during continuous use.

Spray System Advantage

High-coverage spray design ensures deep internal cleaning and improved hygiene results.

Low Maintenance Advantage

Simplified structure reduces maintenance workload and improves long-term operational efficiency.

Technical Specifications

Filling Heads2 heads – Dual filling stations, suitable for small to medium batch productionCapacity30-50Kegs/h
Machine Dimensions (L×W×H)~600×650×1550 mm ~1200×850×1550 mm – Depending on single or double head designApplicable Keg Size10–50 L (up to 60 L optional) – Supports EURO/US/DIN couplings
Net Weight~65–180 kg – Varies with configurationBeer Waste<1% – Uses back-pressure and CO₂ pre-pressurization to reduce foam
Power / VoltageAC 220V / 380V 50Hz (customizable) – Single or three-phase optionalFilling MethodUpright / topside up – Top-down filling
Power Consumption~30–80 W – Depends on number of filling headsControl SystemPLC / Button panel / Touch screen – Optional SIEMENS/Schneider
CO₂ PressurizationSupported – CO₂ flushing reduces oxidation and foamCIP CleaningOptional – Piping supports CIP (Clean-in-Place) circulation


Working Process of 2 Head Keg Washer

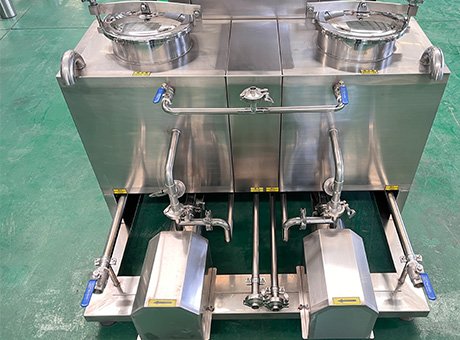

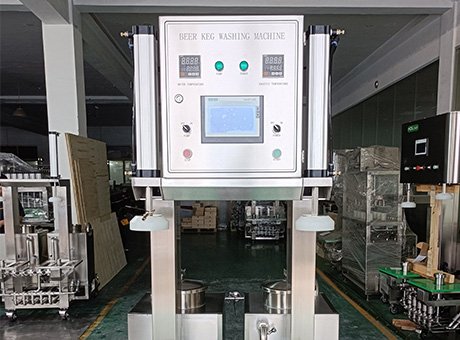

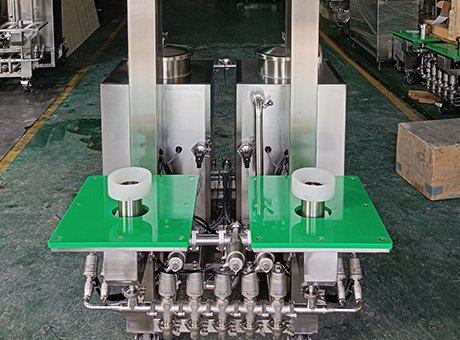

Detailed Display

详情_0000_Double heads keg washer
详情_0001_Double heads keg washer
详情_0002_2024-08-06 122908

FAQ

1.What is the cleaning capacity of the 2 head keg washer?

It cleans and sanitises 30–50 kegs per hour, depending on keg size and cycle intensity. The second washing head roughly doubles the rate of the single-head unit, and because the heads run in parallel one keg is being cleaned while the other is loaded or unloaded.

2.Which containers can the two heads wash, and how are they configured?

It cleans 10–50 L stainless steel kegs, with 60 L available as an optional maximum size. Each head takes its own adaptor, so the two heads can be set up for the same keg size or for two different sizes — useful if you wash 30 L and 50 L kegs in the same session. The cleaning cycle is configured per head according to the container it receives. Confirm your keg mix at quotation stage so both heads are fitted with the right adaptors.

3.Which production scale is it designed for?

It is designed for breweries where keg washing has become a daily bottleneck — typically when kegs are waiting to be cleaned before filling, or when washing occupies more of a shift than the filling itself. It suits mid-sized breweries and contract packers with a high keg turnover. If kegs are washed in occasional batches rather than daily, a single-head machine is the better buy.

4.What utilities and operators does it require?

It needs power and hot water or steam, plus a water supply and drainage. Because two kegs are being cleaned at once, water and hot water demand is higher than on a single-head unit, so confirm your supply and drainage capacity before installation. One operator is sufficient: while one head runs its cycle, they load or unload the other. Machine dimensions are listed in the Technical Specifications table on this page.

5.What is the benefit of dual-head washing, and when is it worth it?

The benefit is that cleaning happens continuously rather than in single file: while one head is running its cycle, the other is being loaded or unloaded, so the machine is rarely idle. It is worth the extra cost once keg washing directly delays filling or displaces other work. If kegs are only washed in occasional batches, a single-head machine gives the same cleaning result for less.
