Semi-Automatic Bottle Filling & Capping Machine

4 Heads Bottle Filling and Capping Machine

4-head semi-automatic bottle filling machine

4 Heads Bottle Filling and Capping Machine

4 Heads Bottle Filling and Capping Machine is designed for small to medium beverage production and growing breweries. It provides efficient filling and reliable capping for beer, juice, wine, kombucha, sparkling water, and carbonated drinks. With four filling heads, stable filling accuracy, compact structure, and easy operation, it improves production efficiency while maintaining product quality.

Get Quote

(0) Reviews

4 Heads Bottle Filling and Capping Machine

4 Heads Bottle Filling and Capping Machine is suitable for craft breweries, beverage factories, wineries, and kombucha producers. It integrates bottle filling and crown capping into one compact automatic system, offering higher production efficiency than manual equipment.

Main configurations include four stainless steel filling valves, automatic crown capping system, bottle lifting mechanism, CO₂ pressure balancing system, Siemens PLC control, food-grade pipelines, and stainless steel frame. The machine features stable filling performance, low oxygen pickup, simple operation, and convenient maintenance, making it an ideal solution for small and medium beverage packaging.

Main Function and Feature

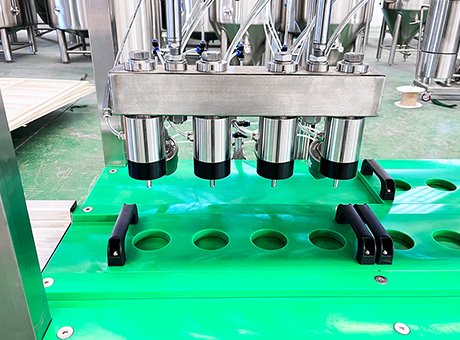

4-Head High-Efficiency Filling

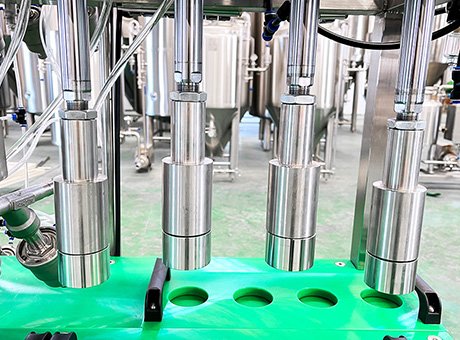

4 precision isobaric filling valves ensure accurate filling levels, stable performance, and improved production efficiency.

Automatic Crown Capping System

Automatic crown capping provides reliable sealing, minimizes leakage, and ensures consistent packaging quality.

Advanced Isobaric Filling Technology

Isobaric filling reduces foaming and oxygen pickup, preserving carbonation, freshness, and beverage flavor.

Intelligent PLC Control System

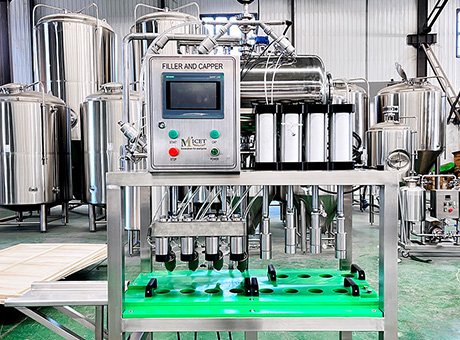

Siemens PLC and touch screen enable automatic operation, simple parameter adjustment, and stable machine performance.

Hygienic Stainless Steel Construction

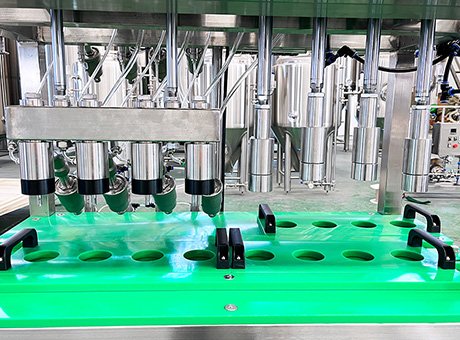

Food-grade SUS304 stainless steel ensures corrosion resistance, easy cleaning, and hygienic beverage production.

Compact Design & Easy Maintenance

Compact structure saves space and allows quick cleaning, convenient maintenance, and easy bottle size adjustment.

Technical Specifications

Machine Type	Semi-Automatic Bottle Filling & Capping Machine	Filling Method	Gravity or Counter-Pressure Filling (optional)
Filling Heads	4 Heads	Capping Type	Crown Cap (optional ROPP)
Capping Heads	4 Heads	Material	Stainless Steel (SUS304)
Filling Capacity	200BPH/h	Control System	Electrical Control Panel
Applicable Bottles	330ml, 500ml	Production Capacity	Depends on head configuration and bottle size
Applicable Products	Beer, carbonated drinks, sparkling beverages, other liquid products	Air / CO₂ Requirement	Required for counter-pressure filling

Working Process of 4 Heads Bottle Filling and Capping Machine

Detailed Display

FAQ

1.What is the production capacity of the 4-head bottle filling and capping machine?

The 4-head machine fills and caps up to 200 bottles per hour on 330 ml and 500 ml glass bottles. Because capacity on an isobaric filler depends on fill volume as well as on the number of filling heads, larger bottles or higher fill volumes reduce the hourly figure. Tell us your bottle size and target daily output and we will confirm the exact figure for your product.

2.What bottle sizes can the 4-head machine handle?

It handles 330 ml and 500 ml glass bottles. The machine uses changeable format parts, so one unit covers both sizes rather than being locked to a single format. Format changeover is a parts swap rather than a rebuild, which is what keeps it practical for producers running more than one bottle size or product format. Send us your bottle drawing and we will confirm the format parts required.

3.Which production scale is the 4-head machine designed for?

It is designed for producers running small batches or multiple bottle sizes or product formats, where changeover flexibility matters more than raw hourly output. It suits startups moving off manual filling, pilot volumes, and breweries that package a different product every couple of days. If your production is already continuous and you are losing time to changeovers, a higher head count will pay back faster than optimising this setup.

4.What utilities and operators does it require?

It needs a standard power supply and a compressed air connection — the usual services in an existing filling area, with no dedicated line layout required. One operator is sufficient: they supervise the fill and cap cycle and keep bottles supplied to the infeed. Because the machine is self-contained, it can be installed without a conveyor system or a separate bottle staging area. Machine dimensions are listed in the Technical Specifications table on this page.

5.Can I upgrade to a higher head count later?

Yes, and it is worth planning for at the quotation stage. The filling principle and many of the components are shared across the 4, 6, 8 and 10-head machines, so an upgrade usually means changing the filling head assembly and the drive rather than replacing the whole unit. Tell us your expected growth so we can confirm which parts are re-used and which are changed.
